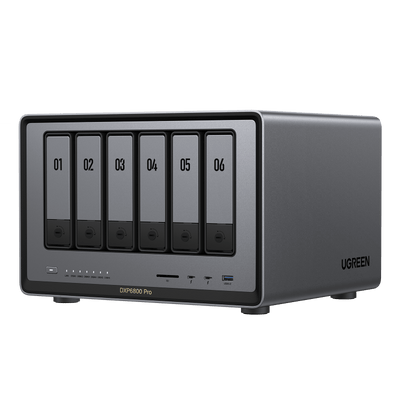

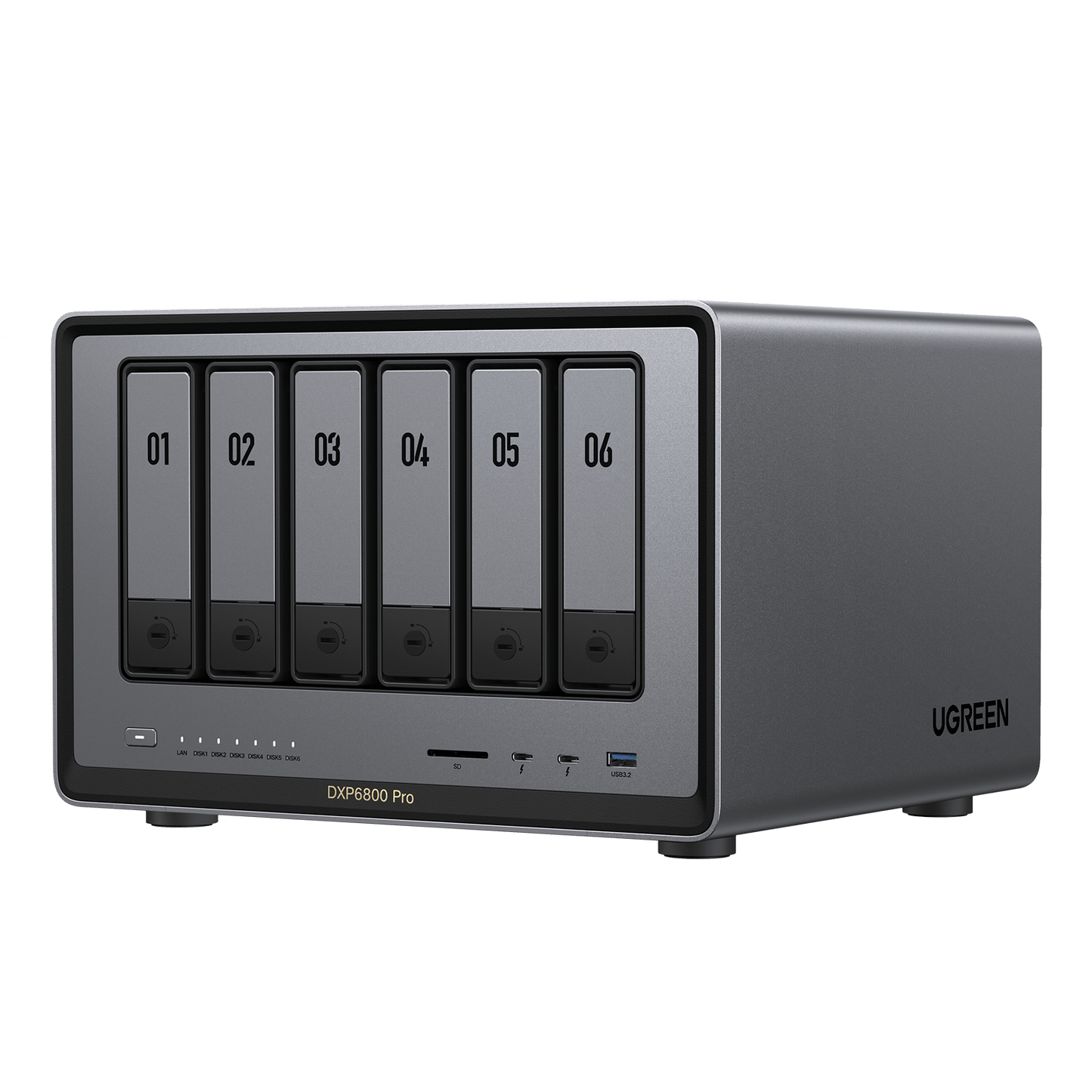

UGREEN NASync DXP6800 Pro
Intel i5 1235u 10-Core CPU, 2 * 10GbE, 8K HDMI, 2 * TBT4
Regular price
$1,019.99 USD
Sale price
$1,019.99 USD
Regular price
$1,199.99 USD
Unit price
per
- Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s.
- 12th Gen 10-core Intel® Core™ Processor: With a 12th Gen, 10-core 12-thread Intel® Core™ i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.
- 6-Bay, 160TB Massive Data Storage: Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 160TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.
- One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.
- Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz provide the latest in processing speeds and improved software and system performance.
Couldn't load pickup availability
.
Comparison with Other UGREEN NASync
UGREEN NASync DXP6800 Pro
$1,019.99
Drive Bays
6-Bay (SATA)
8-Bay (SATA)
4 Slots (M.2 NVMe)
2-Bay (SATA)
4-Bay (SATA)
4-Bay (SATA)
CPU Model
1235u
1235u
1235u
N100
N100
8505
Expandable RAM (Max)
64GB
64GB
32GB
16GB
16GB
32GB
Flash Memory (System Disk)
SSD 128GB
SSD 128GB
SSD 128GB
eMMC 32GB
eMMC 32GB
SSD 128GB
SATA Drive Bays
6
8
-
2
4
4
M.2 SSD Drive Slots
2
2
4
2
2
2
RAID
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
Maximum Storage
160TB (6x 24TB + 2x 8TB)
208TB (8x 24TB + 2x 8TB)
32TB (4x 8TB)
64TB (2x 24TB + 2x 8TB)
112TB (4x 24TB + 2x 8TB
112TB (4x 24TB + 2x 8TB)
LAN Ports (RJ45)
2x 10GbE
2x 10GbE
1x 10GbE
1x 2.5GbE
2x 2.5GbE
1x 2.5GbE, 1x 10GbE
Specs
| SKU | 25898 |
| Model | DXP6800 Pro |
| Drive Bays | 6-Bay (SATA) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel x86 12th Generation N Series 4 Cores 4 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | 6 |
| M.2 SSD Drive Slots | 2 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 160TB (6x 24TB + 2x 8TB) |
| LAN Ports (RJ45) | 2x 10GbE |
| PCIe Expansion | 1x PCIe x4 |

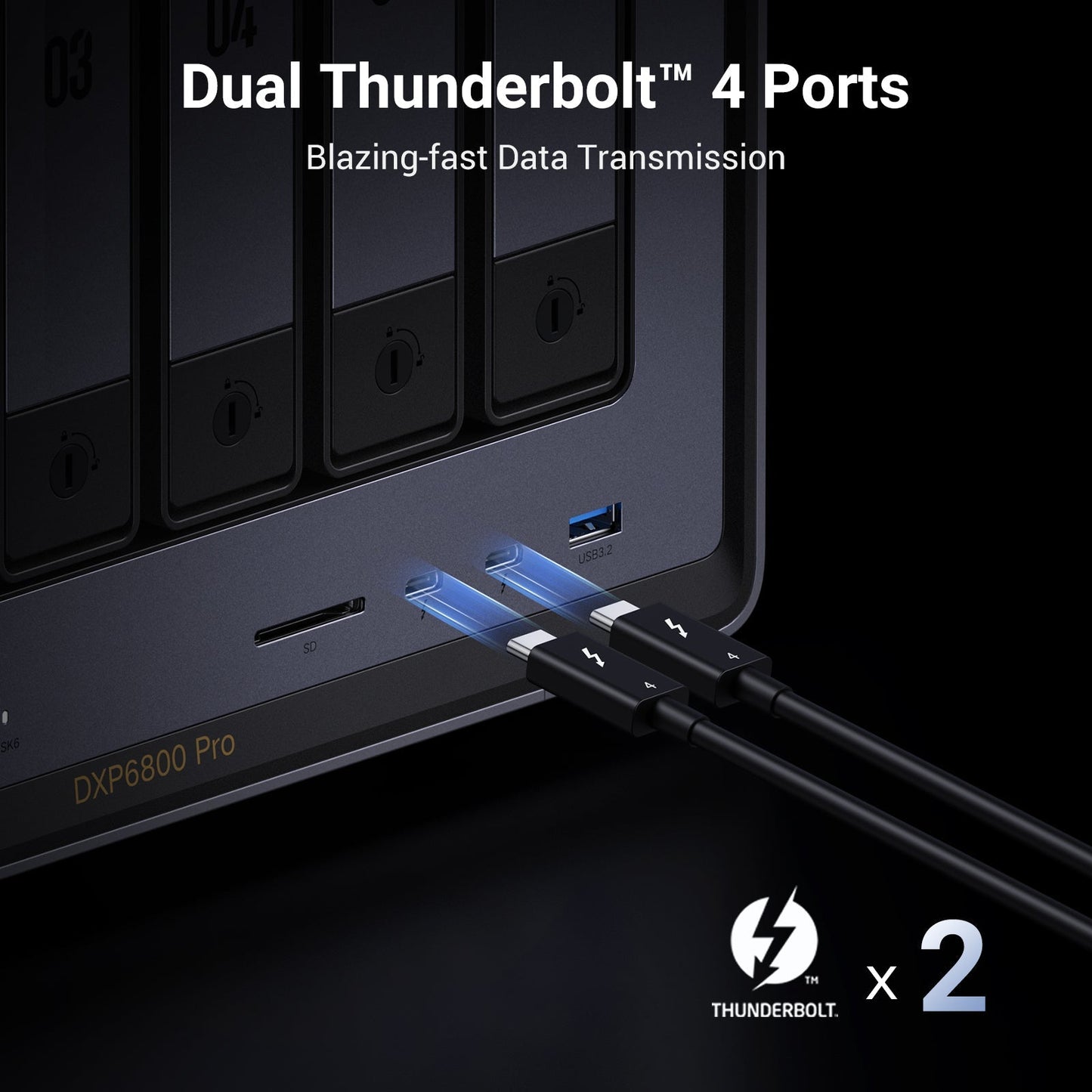

| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | 2x Thunderbolt 4 (40Gb/s) |
| High-Speed USB Ports (Rear Panel) | 2x USB-A (10Gb/s) |
| USB 2.0 (Rear Panel) | 2x USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI | 8K |
| Wi-Fi | - |
